Compact, Power Distribution Centers


  • General
  • Features
  • Options

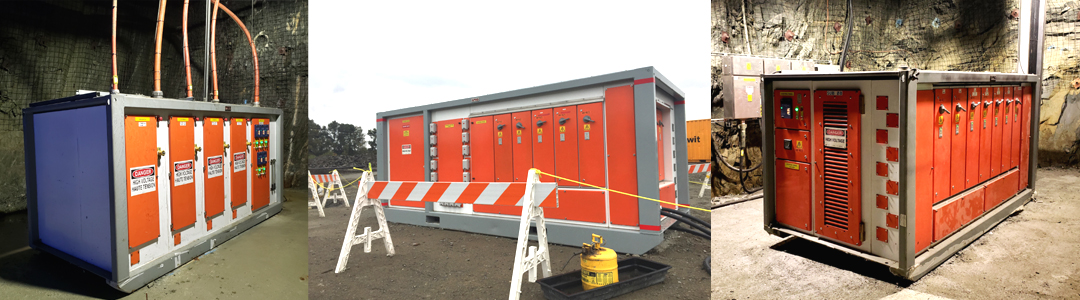

IMG Power Distribution Centers were originally designed for underground mining applications where physical working spaces are minimal, however, in recent years these units have been successfully implemented in other industries. The rigid and compact design of these units makes them suitable for other applications.

IMG Power Distribution Centers are designed with the most innovative, up-to-date components, these units provide operators with convenient, safe and most efficient use. Although these units are designed specifically for underground coal mining operations where safety requirements are of the highest level, other applications are relevant where minimal space and portability are required factors.

This equipment supersedes all required safety standards while supplying power to and providing protection for mobile, electric equipment. These units are designed to specification and clients requirements.

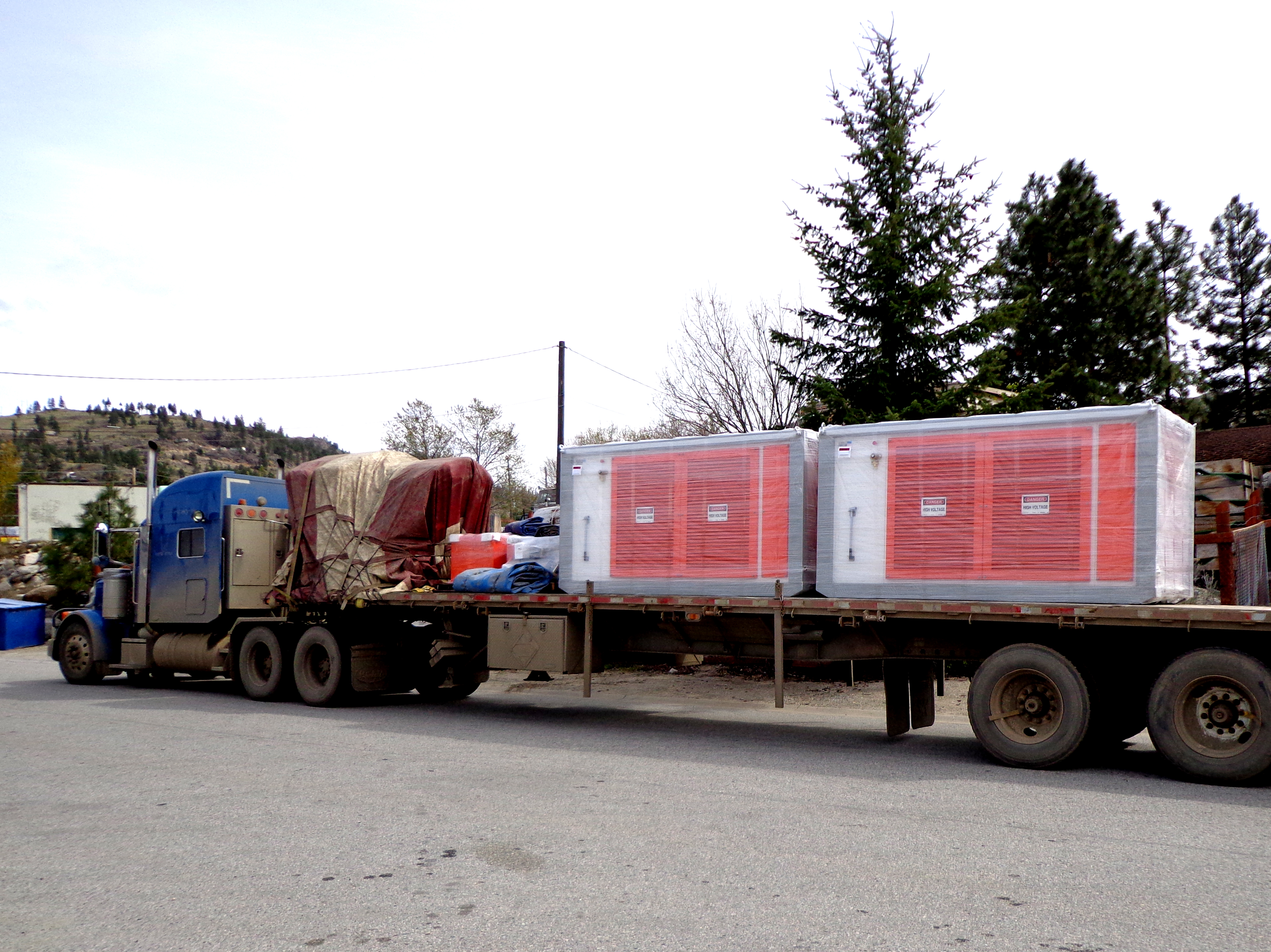

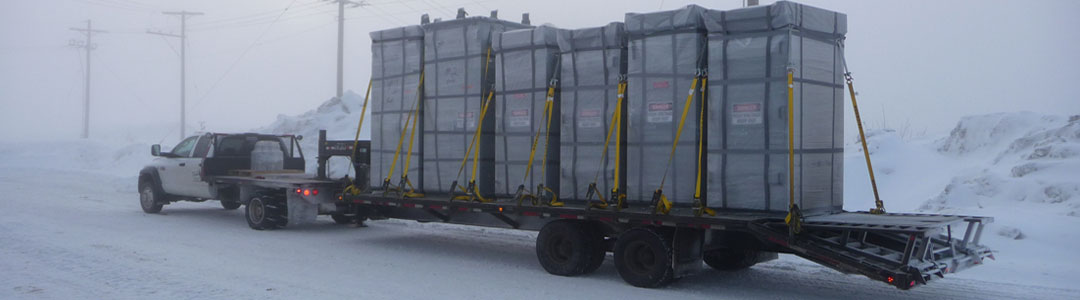

Rigid construction and powder-coat finish ensure maximum durability in extreme environments. The units are skid-mounted and equipped with roof-top eye-hooks that allow for easy transportation in limited spaces.

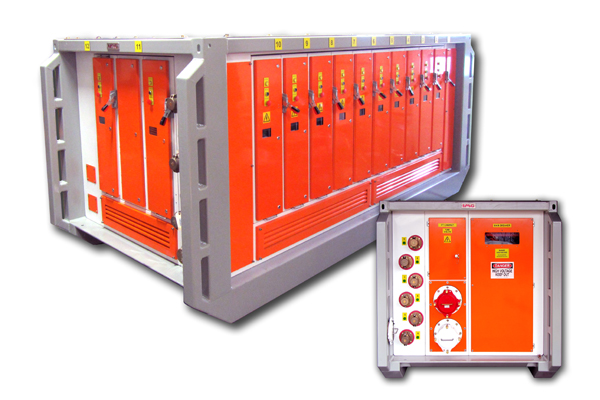

This compact PDC system is designed to be completely modular with each section being fully housed in it’s own enclosure.

 This feature is especially convenient in the out-going, MCC-like section, where each module is easily removed and replaced in case of necessary maintenance or repairs.

 This “plug-in” style of outgoing section also allows for flexibility when adapting to each Mine’s requirements, as each module is inter-changeable between either feeders, starters, soft-starts or VFD’s.





PRODUCT FEATURES

  • Compact, Skid-Mounted, Modular & Corrosion Resistant
  • Side-Operated ABB Loadbreak Switch and Tavrida Vacuum Circuit Breaker
  • Modular Out-goers incorporate the latest technology Control Relays that allow for equipment
  • HMI Interface & Monitor provides operators on/off-site remote control & monitoring
  • Over-Current, Over/Under-Voltage, Thermal & Frequency Protection
  • Ground Fault and Ground Check Monitor & Indicating Device
  • Key Interlock




PRODUCT OPTIONS

  • Power Capacity from 500kVA up tp 2000kVA
  • Low Profile and/or Split Enclosure
  • Transfomer Protection Relay for Monitoring both Primary and Secondary Windings
  • Flange-Mount Cable Couplers
